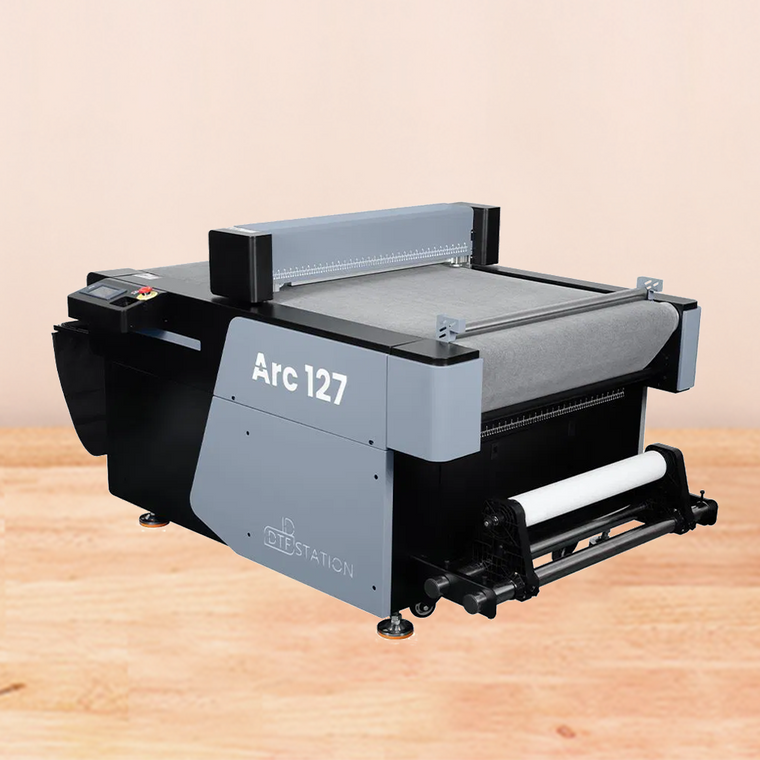

Arc 127 Advanced DTF Roller Cutter

Arc 127 Advanced Roller Cutter for DTF Printers

The Arc 127 Advanced Roller Cutter, is an automatic roller cutting machine with a max cutting width of 27 inches. It supports both sheet and roll cutting. It has options of single-blade and dual-blade cutting. Arc 127 is ideal for a wide range of materials, including DTF prints and UV DTF Prints. This machine boosts productivity for high output DTF printing.

Compatible with:

• Prestige XL2
• Prestige XL3
• Prestige XL4
• Aries 113
• Aries 124

Features:

• Automated Cutting - cut you DTF or UV DTF prints in an easier, less labor-intensive and less labor intensive-expensive workflow.
• Seamless Integration - integrate seamlessly with DigiRIP RIP Software and DTF Station's line of printers.
• Simple, user-friendly interface - easy to use with intuitive control panel
• Versatile - cuts various materials

Specifications:

• Max. Media Width: 27.5" (700 mm)
• Max. Cutting Size (Rolls): 26.8" x 34.6" (680 mm x 800 mm)
• Max. Cutting Size (Sheets): 23.6" x 31.5" (600 mm x 800 mm)
• Max. Cutting Force: 9.8N
• Cutting Speed: 39.4"/s (1000mm/s)
• Cutting Thickness: 0.5-3 mm (with optional cutting tools)
• Mechanical Resolution: 0.05 mm
• Machine Dimensions: 146 cm x 130 cm x 100 cm
• Packaging Dimensions: 170 cm x 127 cm x 118.9 cm
• Machine/Packaging Weight: 529 lbs/551 lbs
• Electrical Parameters: 1.1KW / 110V / 10A - 1.1KW / 220V / 5A
• Suitable Users: Industrial-level users/Printing factories

Benefits:

• Easy to use and maintain!
• Ideal automatic prints cutting colutions or large format DTF printers (at least 24"/60 cm) and all UV DTF printers
• Suitable users: Industrial-level users or printing factories

Tools/Structure:

• High-Precision Passive Rotary Blade: Made from high quality tungsten steel, it supports full and half cuts, suitable for flexible material like vinyl films and adhesive labels.
• Large Diameter Snap Ring Blade (Optional): Ideal for cutting paper materials with thickness of 1-1.3mm, providing smooth cutting edges.
• Aluminum Vacuum Platform: Vortex design with strong suction, enhancing material flatness.
• Conveyor System: Equipped with pneumatic clamps and roll material support, improving the adhesion between the material and the conveyor belt.
• Feeding Design: Designed for processing long roll materials, saving installation time and enhancing cutting stability.
• Multi-Functional Operation: Supports blind cutting, edge detection, and single-sheet processing, meeting diverse needs.
• Cutting Precision: Camera accuratlely reads marks, suitable for precise contour cutting.
• Independent electrical system and pneumatic system: Easier maintenance and troubleshooting.
